Fear No Place
HYBRID
Villain SX10 H W
Villain SX10 H
Unrivalled power
Advanced hybrid technology
Red
Green
Download manual
Villain SX10 H W
Villain SX10 H
Unrivalled power
Advanced hybrid technology
Red
Green
Download manual
720° View
Full control
Refined, flowing lines sweep upward from front to rear and are defined by smooth surfaces. The sharp body lines are wrapped by an orange-red steel frame — elegant yet aggressive. The blend and continuity create what we call controlled tension.
Predatory look
At first glance it is clear that this beast is a true Villain. Aggressive body features and meticulous attention to detail make this buggy truly worth attention.
Streamlined shape
The streamlined shape is best seen in profile — a low nose, curved fenders and a more massive rear body.
Smart engineering
The Villain is built for off-road, and whatever hits it takes, it shrugs them off — you will not see any damage.
Simple adjustable tension
Segway vehicles boast not only power and impressive specifications overall, but also an incredibly attractive appearance.
1784
1241
2512
Gallery
A first-of-its-kind hybrid transmission
The Villain offers the first hybrid powertrain in the Powersports industry, delivering an unrivalled power-to-weight ratio and lightning-fast acceleration. The Villain can switch between REEV and EV modes.
196 horsepower
The in-house developed 4-in-1 controller, paired with a parallel liquid-cooled 1000cc twin-cylinder engine (4-stroke, 8-valve, DOHC), delivers a peak electric-motor output of 196 hp and instant torque of 250 N·m.
Range Extender EV mode
The Range Extender works full-time to support the electric motor. In S gear the peak electric-motor power can reach 144 kW. In D gear the maximum electric-motor power is limited to 100 kW.
Flawless EV Mode
EV mode solves the noise problem. It can only operate when the battery charge exceeds 50%.
Triple cooling systems
The Villain has an independent dual cooling system for both engines. The oil-column piston cooling system and the water-oil heat-exchange system deliver the highest cooling performance, regardless of the ambient temperature.
  • 196 horsepower
  • Range Extender EV mode
  • Flawless EV Mode
  • Triple cooling systems
Smart control system

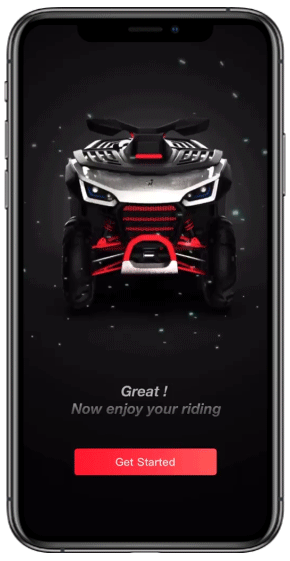

You can access your ATV or buggy data in real time through the intelligent control system (SCS). Thanks to smart interaction with your vehicle, you will discover epic places to ride!

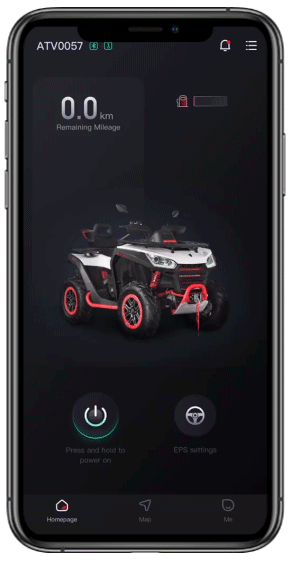

AirLock
As you approach the Snarler, you can activate it via Bluetooth from your smartphone (AirLock). You can also use the APP (cellular connection) to remotely unlock the ATV, using your phone as a key.

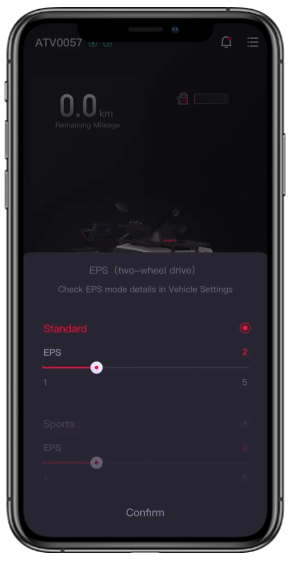

Control settings
From your phone you can set the EPS and speed limits and tune the vehicle to your personal preferences, to fully enjoy the ride and feel the thrill!
Safety guarantee
Add an SOS emergency contact so the app automatically sends them an SMS with your location in case of a serious collision or rollover.
Build your team
Team up with friends — use the offline map, drop geo-tags and enjoy the ride.

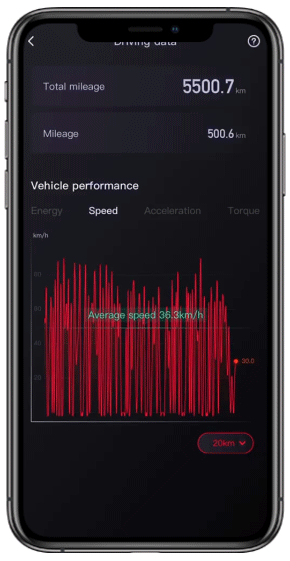

Real-time data
View vehicle data: mileage, real-time torque, horsepower, EPS mode, speed curve and more.
  • AirLock
  • Control settings
  • Safety guarantee
  • Team
  • Real-time data
IOS Download Android Download
Professional configuration, outstanding performance
The Villain stands out for exceptional quality and performance. The combination of a powerful hybrid engine, a high-strength frame, a rigid chassis and fully adjustable gas shock absorbers lets you take on even the toughest terrain.
High-performance gas suspension
High-performance gas suspension
The front double-wishbone independent suspension travel is 400 mm, and the torsion rear suspension is 430 mm. Ground clearance is 360 mm. This ensures a smooth ride over the roughest terrain.
Front and rear diff-lock
Front and rear diff-lock
The Villain has a helical-angle front/rear permanent drive shaft, while the front-axle differential allows smooth switching between 2WD and 4WD. The front- and rear-axle differential locks can also be engaged manually while moving, greatly improving off-road performance.
Smart EPS
Smart EPS
The EPS can be switched on the fly between three settings — Standard, Comfortable and Sport — selectable via the APP, so the ride can be tuned for different drivers, terrain and road conditions.
Lightweight HC steel frame
Lightweight HC steel frame
The high-strength chrome-molybdenum steel frame combines light weight with a high level of rigidity. The strong, lightweight frame delivers a feeling of safety and full steering control.
Specifications
196HP horsepower
1000cc DOHC engine
250 N·m torque
Peak electric-motor power
400 mm Dual-A Arm
Front independent suspension
430 mm Multi-link Trailing-Arm
Rear suspension travel
  • Transmission
    • Powertrain
      Hybrid
    • Engine
      Two-cylinder 4-stroke 1000cc DOHC engine + PMSM (permanent-magnet synchronous motor)
    • Power
      196 hp
    • Torque
      250 N.m
    • Drivetrain
      2WD / 4WD
    • Front axle
      Automatic Diff-Lock (W)
    • Rear axle
      Rear Diff-Lock (W)
    • Power steering (EBS)
      √
  • Suspension system
    • Front suspension
      Dual A-Arm with Stabilizer Bar; Front wheels: 15.7" (40 cm)
    • Rear suspension
      Multi-link Trailing-Arm with Stabilizer Bar; Rear wheels: 17.7" (45 cm)
  • Wheels & Tyres
    • Wheels
      Aluminium with Beadlock
    • Tyres
      Front tyres 30×10.00R14, rear tyres 30×10.00R14 (W)
  • Smart-Moving system
    • Smart command system (DTU+SDC)
      √
    • Instrument panel
      TFT screen
    • Smart touchscreen
      10.4" (W)       10.4" (Optional)(N)
    • Smart-Moving app
      √
  • Dimensions
    • Size (Length / Width / Height)
      132.3 x 72.8 x72.8" (336 × 185 × 185 cm)
    • Ground clearance
      15.7" (40 cm)
    • Seat height
      6.3" (16cm)
    • Wheelbase
      102" (259 cm)
    • Weight
      2247 lb (1020kg)
    • Fuel tank capacity
      10.6 gal (40 L)
    • Front / rear rack capacity
      /
    • Towing capacity
      N/A
  • Other features
    • Smart electronic power steering (EPS)
      Three modes: Standard / Comfort / Sport
    • Frame
      High-strength chrome-molybdenum steel frame
    • Cooling system
      Oil-column piston cooling + liquid & oil heat-exchanger cooling system
    • Headlights
      LED
    • Number of seats
      2
